Product Solutions

PRODUCT SOLUTIONS

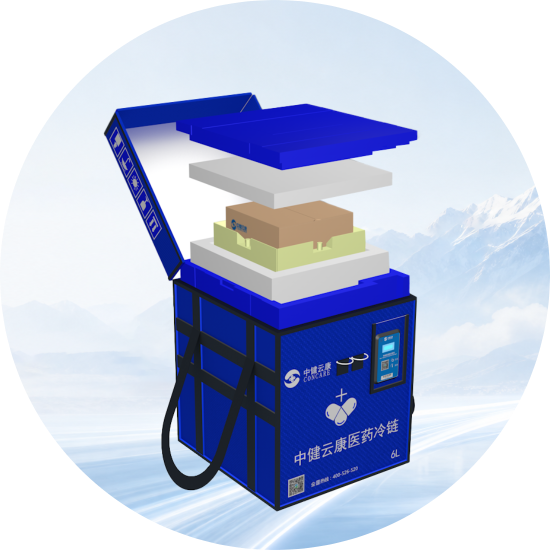

VIP Pharma Cold Box

中健云康依托自主研发的医药保温箱技术，提供系统化解决方案。凭借在医药冷链行业的经验积累，自主研发和销售医药温控包装，专注于为医药冷链行业提供系统化、高效、节能的保温解决方案。

Series	VIP-PP-GF (fiberglass)	VIP-PP-SC (fumed silica)
Main structure	Fiberglass VIP + PP panelized structure	Fumed-silica VIP + PP panelized structure
Key performance	Thermal conductivity ≤0.002 W/(m·K)	Thermal conductivity ≤0.004 W/(m·K)
Selection	Best for international distribution Lowest per-use cost, designed for cross-border shipping	Best for domestic reuse Slower decay, lower lifetime cost

Covers −20°C to +25°C | latent heat up to 255 kJ/kg | solid encapsulation, no leak or contamination risk

Protects VIP panels, PCM packs and payload | strength for stacking and handling | moisture, splash and low-temperature resistant

Live upload via GPRS/4G/NB-IoT | 30-day battery | excursion alerts | API to customer systems | GMP/GSP/GDP and FDA/EMA audit ready

Thermal conductivity ≤0.002–0.004 W/(m·K) | 1/5–1/10 the thickness of conventional materials | more usable volume at the same hold time

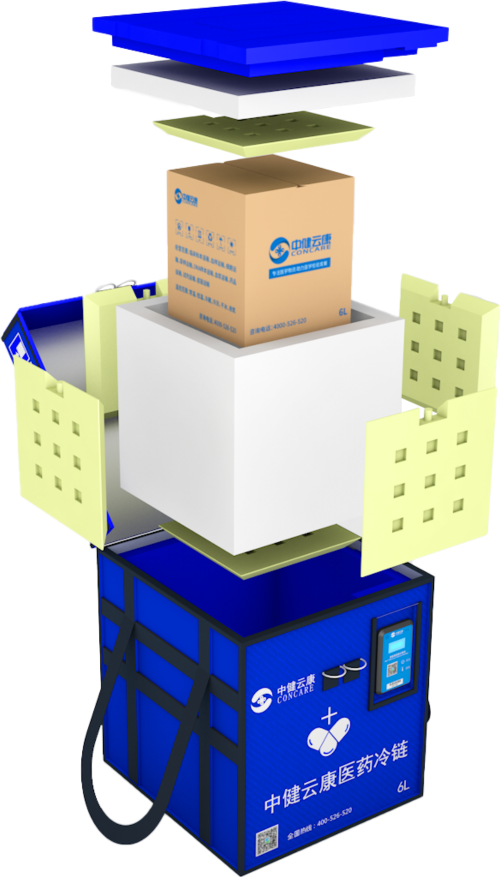

(Images are for reference. Actual structure may vary by model.)

Deterministic temperature control, every shipment

Hold-time performance

Thermal conductivity as low as 0.002 W/(m·K) Hold time of 120 hours or more
Modular serviceability

Panelized structure Replace a single panel without scrapping the box
Full temperature coverage

2–8°C / 15–25°C / −25 to −15°C For every class of medical product
Lightweight design

10–15% lighter than PU boxes of the same volume Easy to handle and move
Lower environmental impact

Fumed silica decay within 30% over 5 years Reusable
Digital traceability

GPRS monitoring, data upload and excursion alerts GSP/GMP/GDP and FDA/EMA audit ready

ELOG-G200

ELOG-G200 is a reusable 4G real-time ultra-low-temperature data logger. An external PT100 probe monitors −200°C to +70°C. It combines temperature, ambient humidity, location, light and tilt/vibration monitoring with cloud-based alerts and shipment tracking. Data is sent to the cloud for remote visibility, while 24,000 local data points and automatic USB PDF reports provide a reliable backup. Configurable flight mode supports air and multimodal cold-chain shipping.
ILOG

ILOG is a single-use 4G real-time temperature and humidity data logger for one-way cold-chain shipping. It monitors temperature, humidity, location, route and light throughout transit, while the cloud platform provides configurable email and SMS alerts. A TFT LCD enables quick device checks, and 22,000 locally stored data points with automatic USB PDF reports provide a reliable backup.

Model	ELOG-G200 (reusable)	ILOG-G200 (single-use)
Temperature range	−200°C to +70°C	−30°C to +70°C
Sensor	RTD (platinum resistance)	PT100
Temperature accuracy	±0.5°C (−20°C to 40°C); ±1°C (other ranges)	±0.5°C
Humidity accuracy	±3%RH	±3%RH
Bluetooth print	Supported	Not supported
Local storage	24,000 local data points	22,000 local data points
Battery life	≥30 days (25°C, 10-min upload interval)	≥120 days (60-min logging interval)
Use case	Reusable, long-haul cold chain	Single-use, short or one-way shipping
